Engineered for drainage

French Drain Fabric

TERRA is the non-woven, needle-punched geotextile built for French drains. It filters silt and soil fines out of the water while letting the water flow freely, so your drain keeps draining instead of clogging. Choose 4oz, 6oz, or 8oz to match your trench depth, soil, and the load above.

Shop TERRARequest Bulk Pricing

Free shipping over $50 · Professional-grade · Filters silt, keeps flow

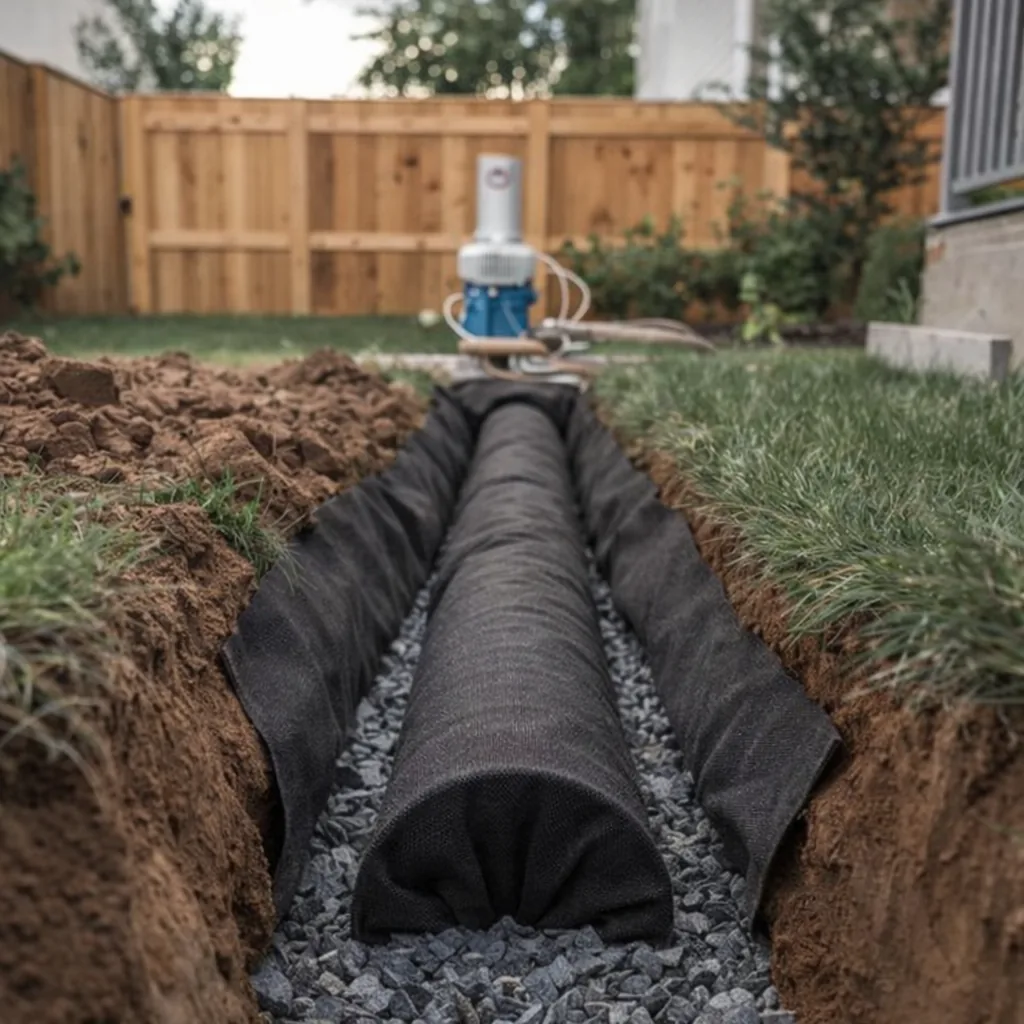

French drain fabric: DOTDAY TERRA non-woven needle-punched geotextile lining a gravel French drain trench
TERRA non-woven in a French drain trench
Filters silt so the drain does not clog.
High flow-through water moves, fines stay out.
Wraps trench & pipe keeps soil and gravel separate.
4, 6, or 8 oz matched to depth and load.
We spec the weight with you.
The problem

Why French drains clog and quit

A French drain only works as long as water can still reach the pipe. The fastest way to kill one is the wrong fabric. Woven weed barrier looks tough, but its tight, flat weave blinds over with silt and stops passing water within a season or two. Skip fabric entirely and soil fines wash straight into the gravel and pipe until the whole trench silts solid. Either way, you are digging it back up.

Woven fabric clogs.Its flat weave blinds over with silt and stops passing water.
No separation.Soil fines migrate into the gravel and choke the void space.
Silted pipe.Fines reach the perforated pipe and the whole drain backs up.
Wrong weight.Too light for the load and the fabric tears during backfill.

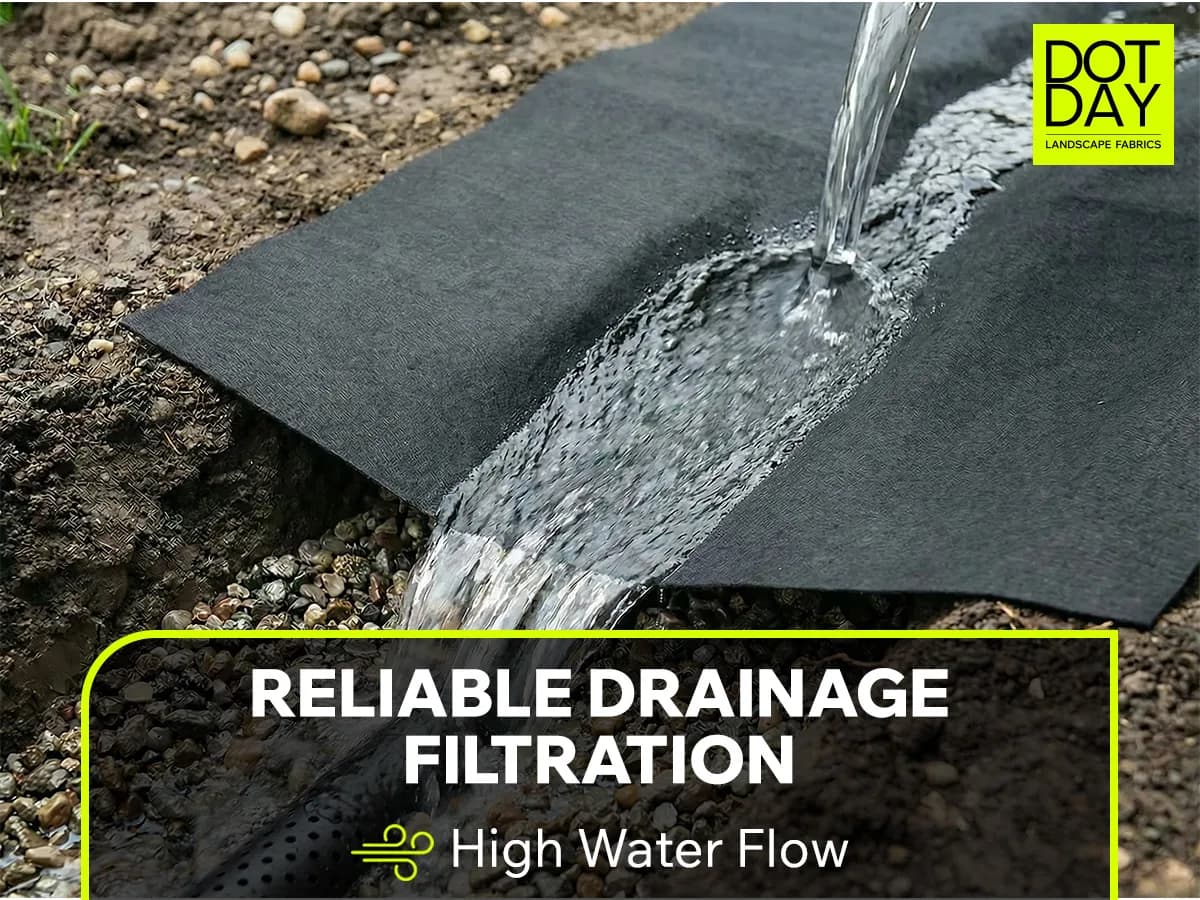

DOTDAY TERRA non-woven needle-punched geotextile close up showing the felted fiber structure that filters silt in a French drain
The fix

Non-woven TERRA filters while it flows

TERRA is a non-woven, needle-punched geotextile, thousands of fibers bonded into a thick felt with millions of tiny pore paths. Those pores are the difference. They are fine enough to hold back silt and soil fines, and open enough to let water pass through at a high rate, so the fabric filters and drains at the same time. That is exactly what a French drain needs, and exactly what flat woven fabric cannot do.

Shop TERRA

One geotextile that filters and drains at once

TERRA's felted, needle-punched structure does two jobs from a single layer, it screens out the fines that clog a drain, while the same open structure lets water move through freely.

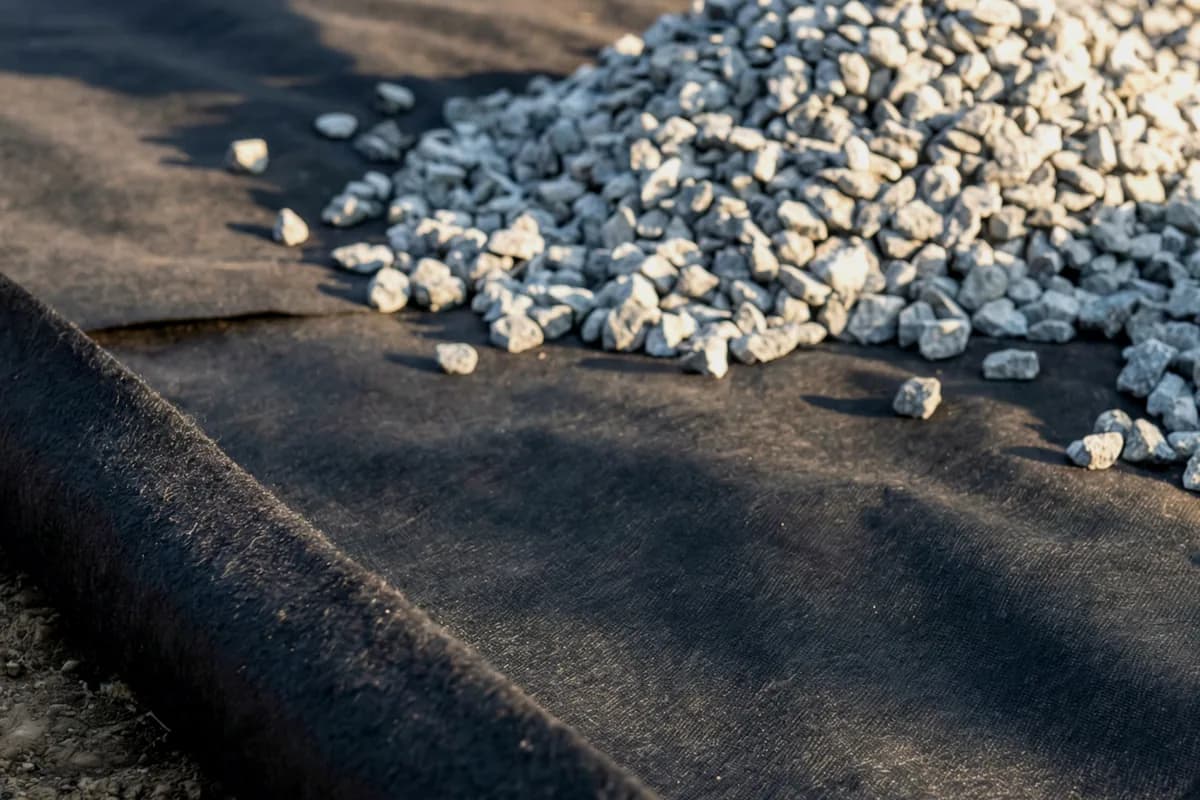

Non-woven TERRA geotextile filtering silt out of water in a French drain

Filters out the fines

The dense non-woven felt catches silt and soil particles before they reach the gravel and pipe, so the drain's void space stays open and water keeps moving.

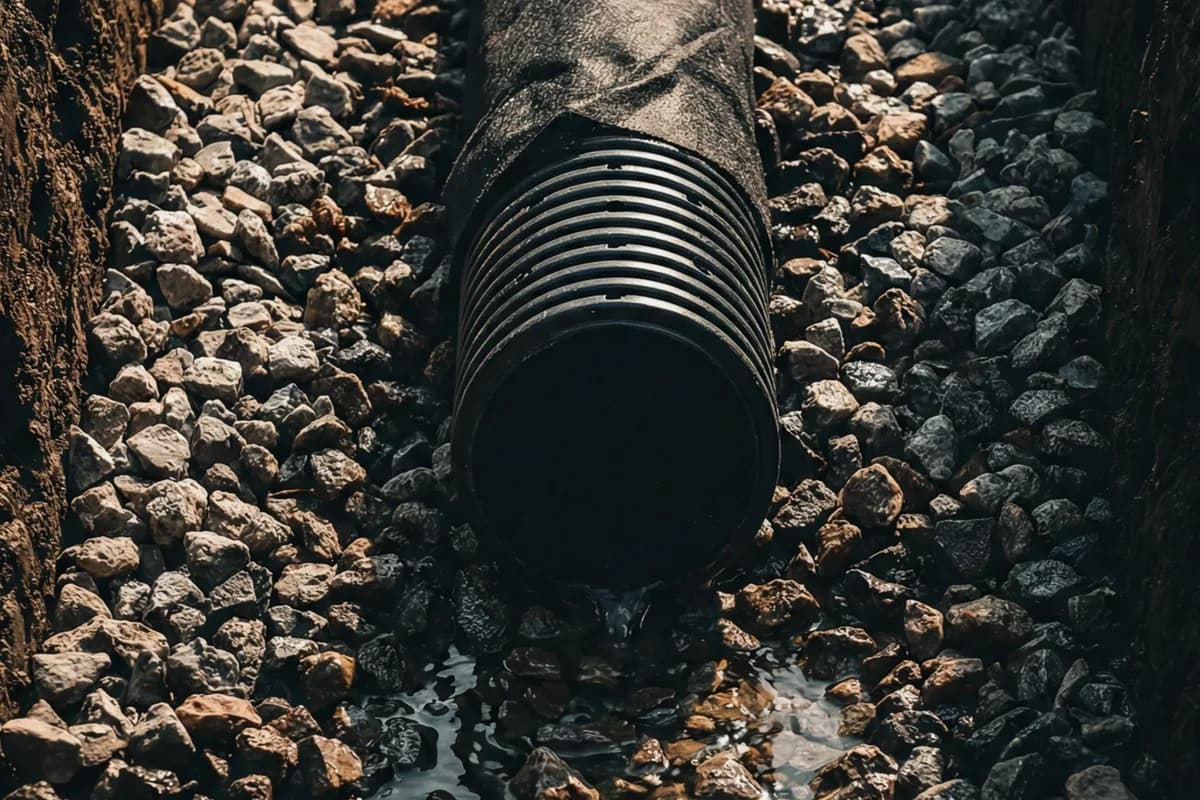

Water flowing through permeable non-woven TERRA geotextile into a French drain

Passes water freely

Millions of pore paths give a high flow-through rate, so water drops into the trench and moves to the pipe instead of pooling at the surface.

Why non-woven is the only right call for a French drain

PropertyNo fabricWoven weed barrierDOTDAY TERRA non-woven
Built forNothing, gravel meets bare soilBlocking weeds, not drainageFiltration and separation in drains
Filters siltNo, fines wash inBlinds over and clogsYes, holds fines back
Water flow-throughHigh at first, then silts upDrops fast as it clogsHigh and stays high
SeparationNone, soil mixes into gravelPartial, until it clogsFull, soil and gravel stay apart
Over timeTrench silts solidWater stops passingKeeps draining for years
Right jobNever for a French drainWeed control under mulchFrench drains, footing drains, filtration

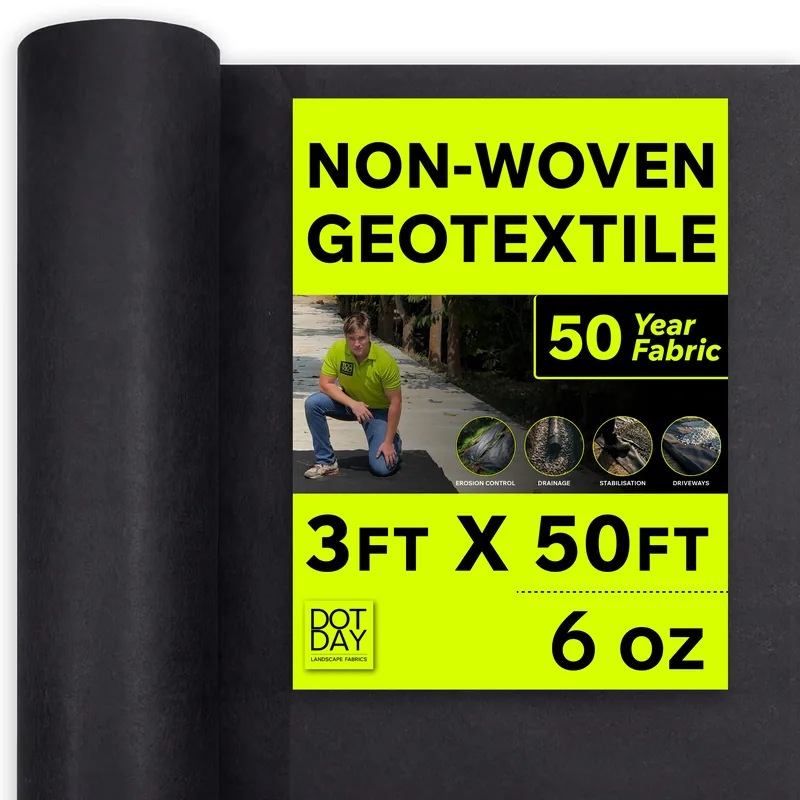

Which TERRA weight for your French drain

Shallow yard & garden drains

Light residential runs, short trenches, and surface water in stable soil.

Use TERRA 4oz

Standard residential & footing drains

Most house perimeter, footing, and yard French drains in average soil.

Use TERRA 6oz

Deep or heavy-clay drains

Deeper trenches, silty or clay soils, and drains that carry more load.

Use TERRA 8oz

Retaining walls & road base

Wall backdrainage, driveways, and structural drainage that sees real load.

Use TERRA 8oz

How TERRA goes into a French drain

  1. 1
    Dig and shape the trench
    Slope the trench to daylight or a sump, about 1 percent fall. Keep the walls clean so the fabric sits flat against soil.
  2. 2
    Line the trench with TERRA
    Roll TERRA down the walls and floor with enough width to wrap over the top later. Overlap seams by 12 inches or more.
  3. 3
    Add gravel and perforated pipe
    Set a gravel base, lay the perforated pipe, then top with washed drainage stone, all inside the fabric.
  4. 4
    Wrap, overlap, and backfill
    Fold the fabric over the stone so it fully wraps the core, then backfill. The wrap is what keeps soil out for good.

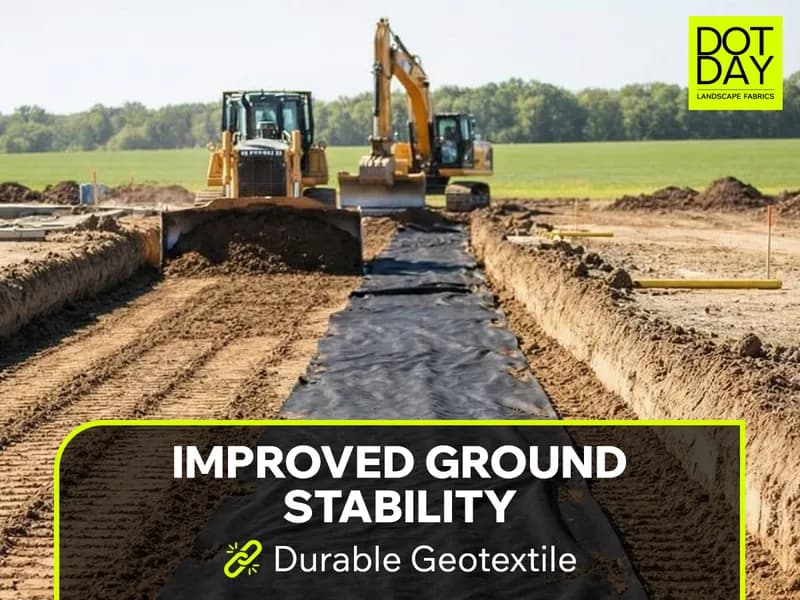

See it in action

Watch DOTDAY fabric on a real install.

From roll-out to the finished surface, see how the right fabric goes down fast and lays flat. The same build pros rely on for beds, hardscape, and drainage, doing its job on site.

  • Cuts clean without fraying at the seams.
  • Non-woven build lets water pass while holding fines back.
  • Built to take gravel, pipe, and backfill in a trench.
Find Your Fabric
DOTDAY Lab

TERRA Spec Sheet

What matters in a drainage trench, in plain terms. Full ASTM-tested values are available on request so you can spec to your engineer's numbers.

Non-wovenNeedle-punched geotextile
4 / 6 / 8 ozThree weights by depth and load
HighWater flow-through rate
FineFilters silt and soil fines
Full wrapSeparates soil from gravel and pipe
On requestASTM flow, AOS, and tensile data

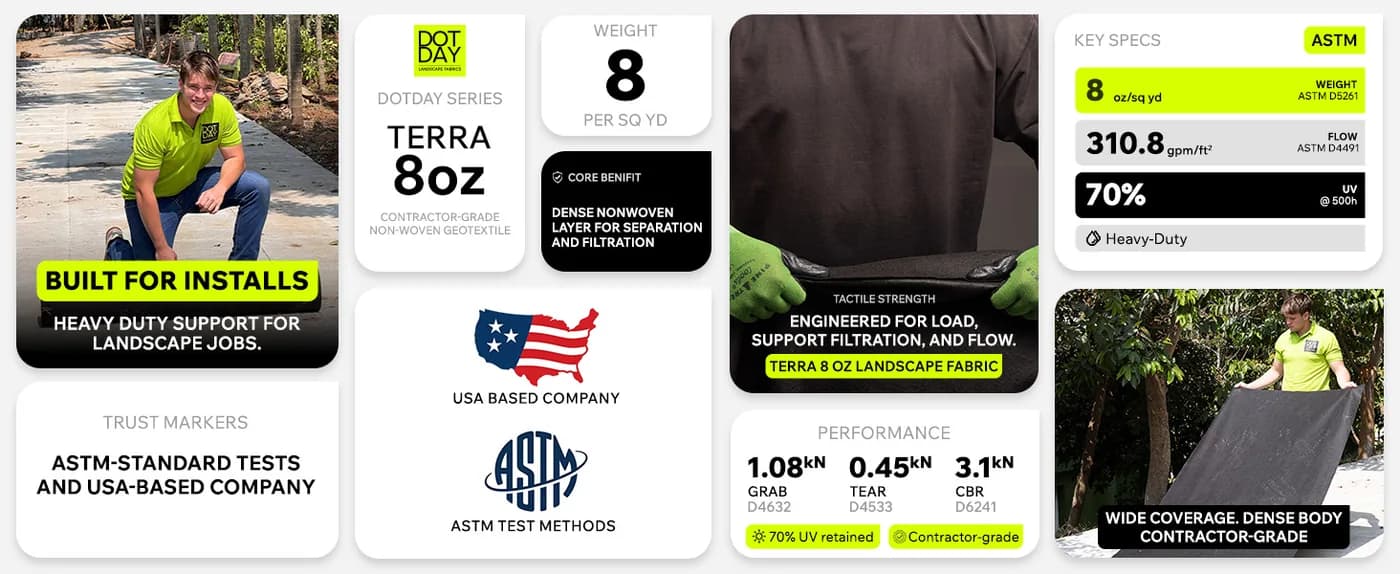

DOTDAY TERRA non-woven geotextile spec overview for French drain filtration and flow

TERRA is a non-woven needle-punched geotextile for drainage, filtration, and soil separation. Request the full ASTM data sheet (flow rate, apparent opening size, grab tensile) to match the exact weight to your French drain.

DOTDAY Field Guide

Woven vs Non-Woven Landscape Fabric

They look similar on the roll but drain in completely different ways. Why non-woven is the filtration fabric and woven is not.

Read the field guide

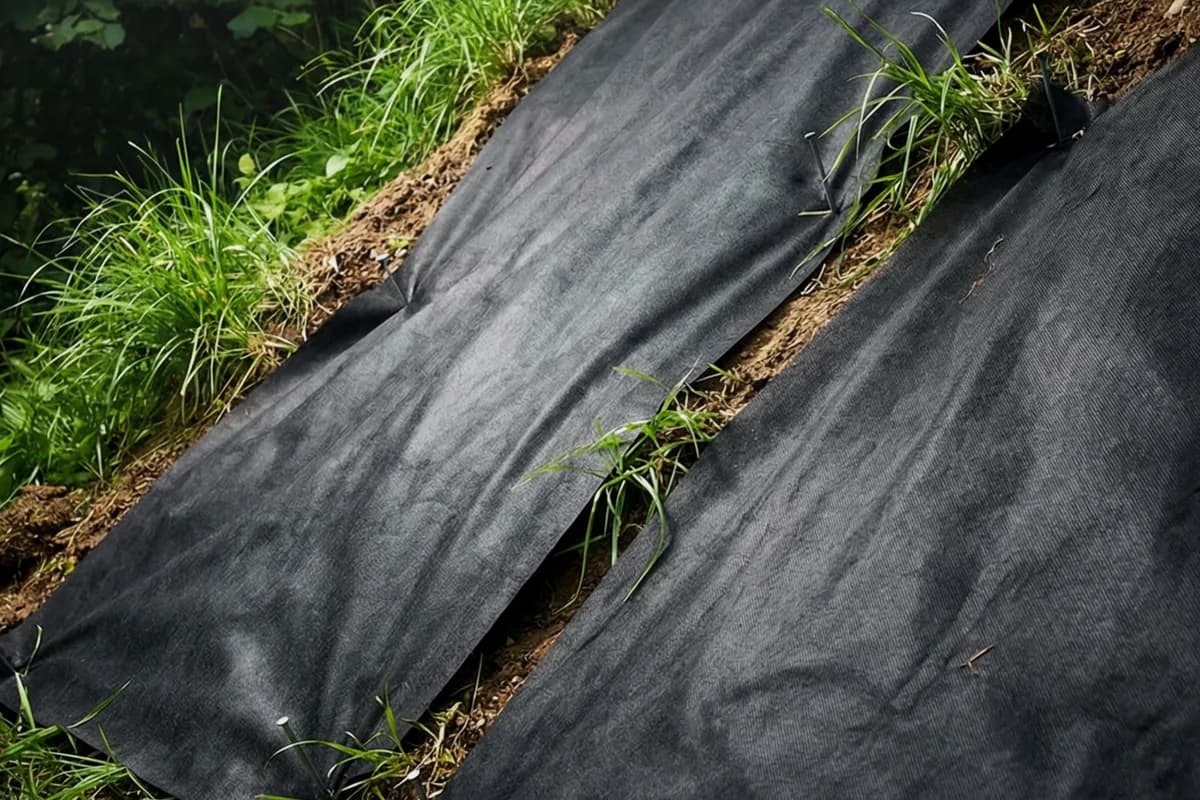

Woven vs non-woven DOTDAY landscape fabric comparison for drainage
60-second quiz

FabricFinder™

Answer a few questions about your ground condition and get matched to SHIELD, XBAR, or TERRA.

Find Your FabricPlan your order

Fabric Calculator

Enter your trench run and get the exact roll count, with a 10 percent overlap buffer added automatically.

Use the Fabric Calculator

French drain fabric, common questions

What fabric should I use in a French drain?

Use a non-woven, needle-punched geotextile like TERRA. It filters silt out of the water while letting water flow through, which is exactly what a drain needs. Woven weed barrier is the wrong choice because it clogs.

Why not use woven weed barrier in a French drain?

Woven fabric has a tight, flat weave built to block light, not to filter water. In a drain it blinds over with silt and stops passing water, so the trench backs up. Non-woven TERRA stays open and keeps draining.

Which TERRA weight do I need?

Use 4oz for shallow garden and yard drains, 6oz for standard residential and footing drains, and 8oz for deep, heavy-clay, or high-load drains and retaining walls. When in doubt, size up or ask us to spec it.

Do I wrap the gravel and pipe in the fabric?

Yes. Line the trench, build the gravel and perforated pipe inside the fabric, then fold it over the top so the core is fully wrapped. The wrap is what keeps soil out and the drain flowing.

How much overlap do I need on the seams?

Overlap seams by at least 12 inches so silt cannot sneak through the joint. On longer runs or unstable soil, use more overlap and pin the fabric so it does not shift during backfill.

Is TERRA the same as filter fabric or drainage fabric?

Yes. Non-woven needle-punched geotextile is what those terms describe. TERRA is built for filtration, separation, and drainage: French drains, footing drains, retaining walls, and road base.

From the field

Keep exploring

Browse all
Find your fabric

Spec the right weight, order the roll, drain it once

Tell us your trench lengths, depth, and soil and we will spec the TERRA weight and widths for the job. Contractors, ask about bulk pricing on full pallets.
